Equation for Current in a Hollow Cylindrical Condctor

A long thin wire that is co - axial with the cylinder carries a current of 24 A in the opposite direction. B r a is given by b Show that when r a this equation gives the magnetic field magnitude B at the surface of a long straight wire carrying current i.

The Magnetic Field At Point P In The Hollow Cylindrical Wire Carrying A Current I Shown I Youtube

A long hollow cylindrical conductor with inner radius 20mm and outer radius 40 mm carries a current of 24 A distributed uniformly across its cross section.

. Find the magnetic field everywhere around the hollow cylindrical conductor shown. A Show that the magnetic field magnitude B r for the radial distance r in the range. TextextbfJJhattextbfztex And that is pretty much it.

When r b it gives zero magnetic field. Current passing through the cylindrical shell of. When r b.

Consider a cylindrical coaxial cable. Solution for current density in a very long hollow cylindrical conductor of radius a and b with a b has the direction of the cylinder axis with modulus. Now determine the total current I in the conductor.

J const current density. Which graph below correctly gives B as a function of the distance r from the center of the cylinder. The center conductor is solid with radius R while the outer conductor is hollow with inner radius a and outer radius b Both conductors have the same total current I of uniform current density but moving in the opposite direction of each other.

And when b 0 it gives the magnetic field inside a solid conductor of radius a carrying current i. Wire carrying current i. A long cylindrical conductor of radius R carries a current i as shown in the figure.

A hollow cylindrical conductor inner radius a outer radius b carries a current i uniformly spread over its cross section. The current density J varies across the cross-section as J kr2 w. Superconducting Magnet Field derivation with Hollow Cylindrical Conductor Current.

This Demonstration shows the magnetic induction for a homogeneously axially magnetized hollow cylindrical magnet. Besides that I know that the cylindrical conductor is infinite long and the same is the cavity. B Show that when r a this equation gives the magnetic field magnitude B at the surface of a long straight.

Are the inner and outer radii of a magnet respectively. A hollow cylindrical conductor of inner radius a and outer radius b carries a current I uniformly spread over its cross-section. B r a is given by.

Working at Applied Electrodynamics Lab NTU Superconducting Magnet Field derivation with Hollow Cylindrical Conductor Current. Electrical Engineering questions and answers. What is the magnitude of the magnetic field a 1.

Physics questions and answers. And through the conducting material there is a current density that is given by. A long thin wire that is coaxial with the cylinder carries a current of 50 A in the opposite direction.

Consider the hollow cylindrical magnet as two cylindrical magnets with radii and of equal length and magnetization. A long hollow cylindrical conductor inner radius 27 mm outer radius 48 mm carries a current of 29 A distributed uniformly across its cross section. The magnetization Am remanent field.

B μ 0 i 2 π a 2 b 2 r 2 b 2 r. Figure in the below shows a cross section of a hollow cylindrical conductor of radii a and b carrying a uniformly distributed current i. A I В П С Ш D IV E V II II IV.

J const current density. Find the magnetic field induction at a point inside the body of the conductor at a distance r where a lt r lt b from the axis of the cylinder. Given l a b.

Inner radius a and. Find the magnetic field everywhere around the hollow cylindrical conductor shown.

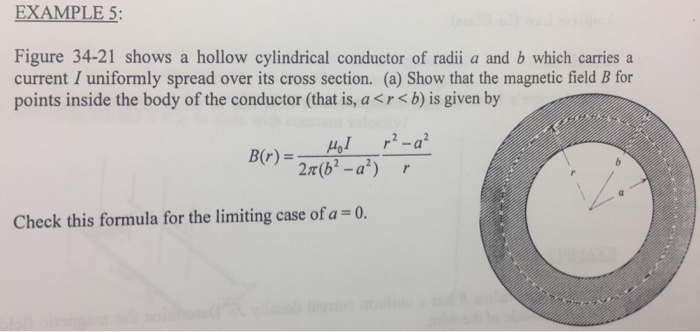

Solved Example 5 Figure 34 21 Shows A Hollow Cylindrical Chegg Com

Solved A Hollow Cylindrical Conductor With Inner Radius A Chegg Com

Solved A Hollow Cylindrical Conductor Of Inner Radius A 9 Chegg Com
